BOOM PUMP
Sizes
| Model | Front Outrigger Spread (F) | Rear Outrigger Spread (R) | F to R | Reach |
|---|---|---|---|---|

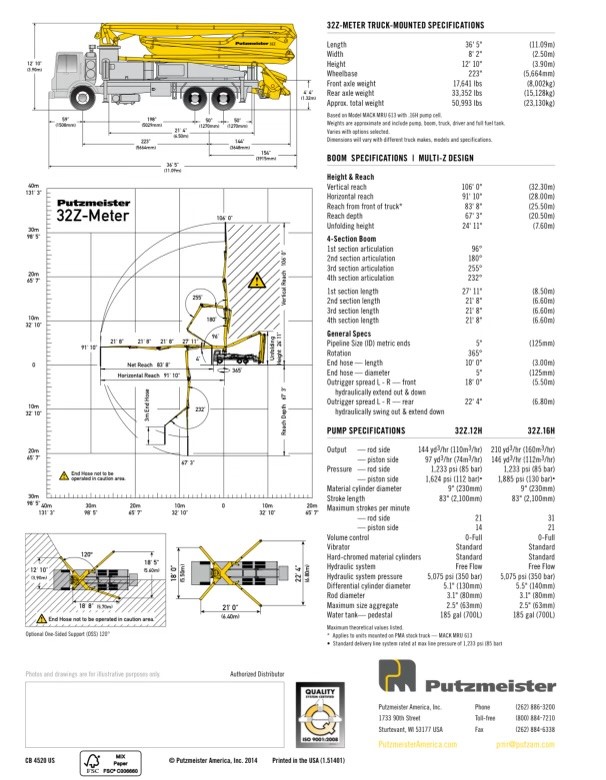

| 32Z Putzmeister | 18' 0" | 22' 4" | 21' 0" | 91' 10" |
| 32-5xz Concord | 20' 8" | 21' 0" | 23' 7" | 92' 10" |

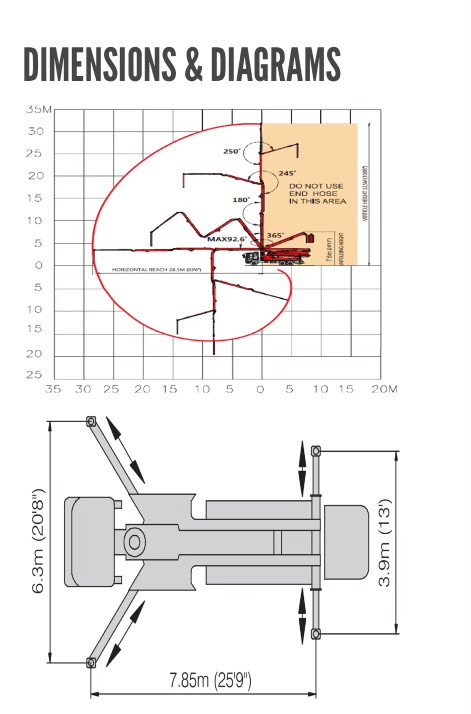

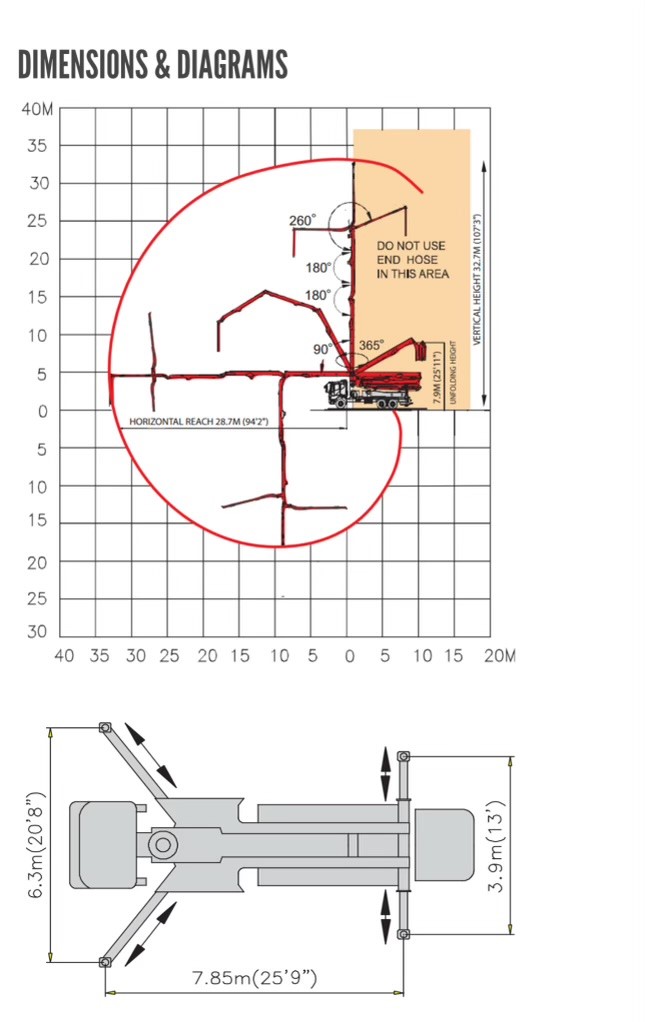

| 33MR Alliance | 20' 8" | 12' 9" | 25' 9" | 94' 2" |
| 33Z Alliance | 20' 8" | 12' 9" | 25' 9" | 94' 2" |

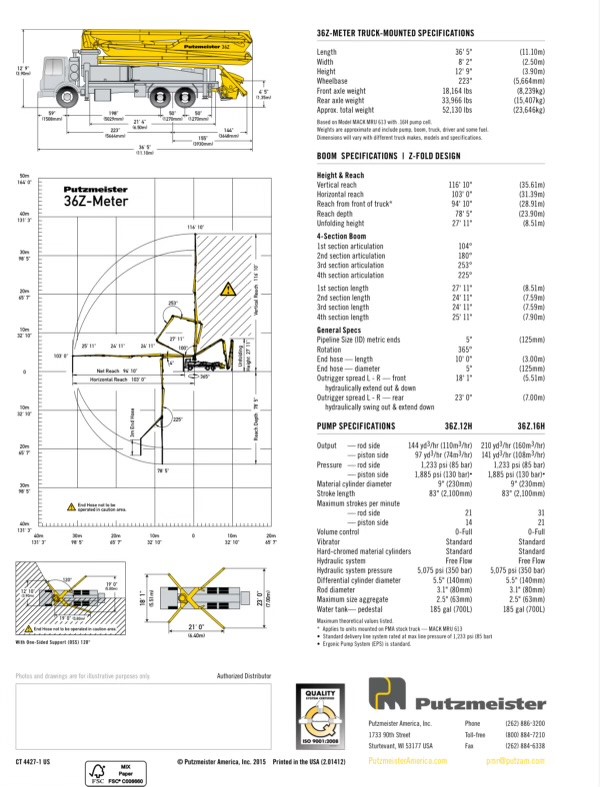

| 36z Putzmeister | 18' 1" | 23' 0" | 21' 0" | 103' 0" |

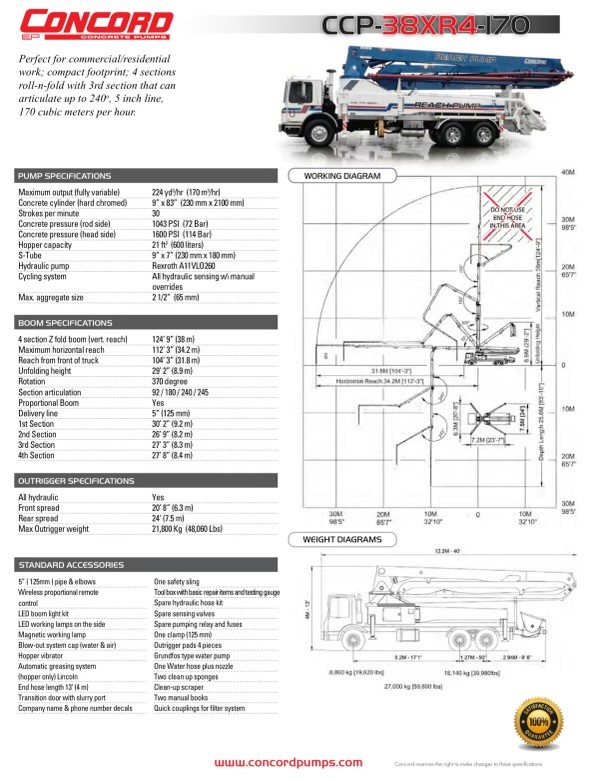

| 38M Concord | 20' 8" | 24' 0" | 23' 7" | 112' 3" |

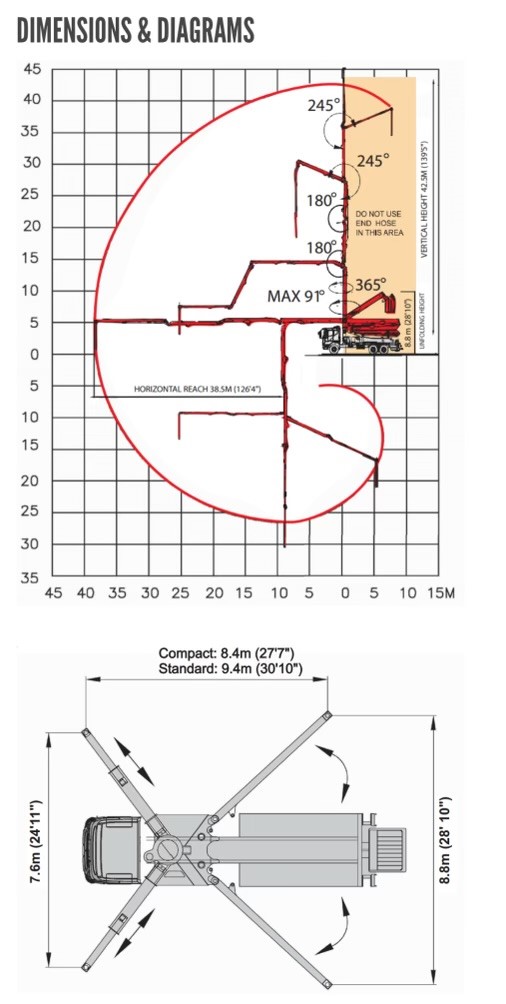

| 43-5RZ Alliance | 24' 11" | 28' 10" | 27' 7" | 126' 4" |

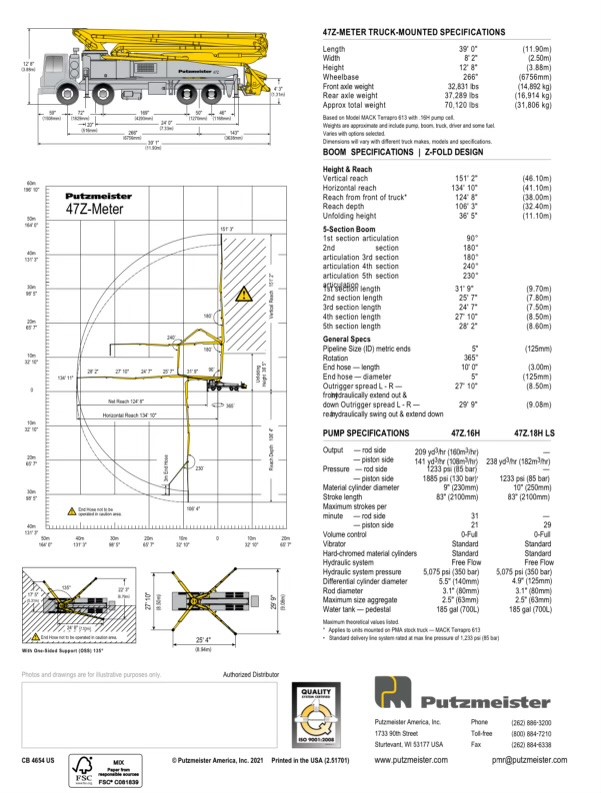

| 47-5RZ Putzmeister | 27' 10" | 29' 9" | 25' 4" | 134' 10" |
| 52-5ZR Concord | 29' 5" | 34' 0" | 32' 2" | 149' 2" |

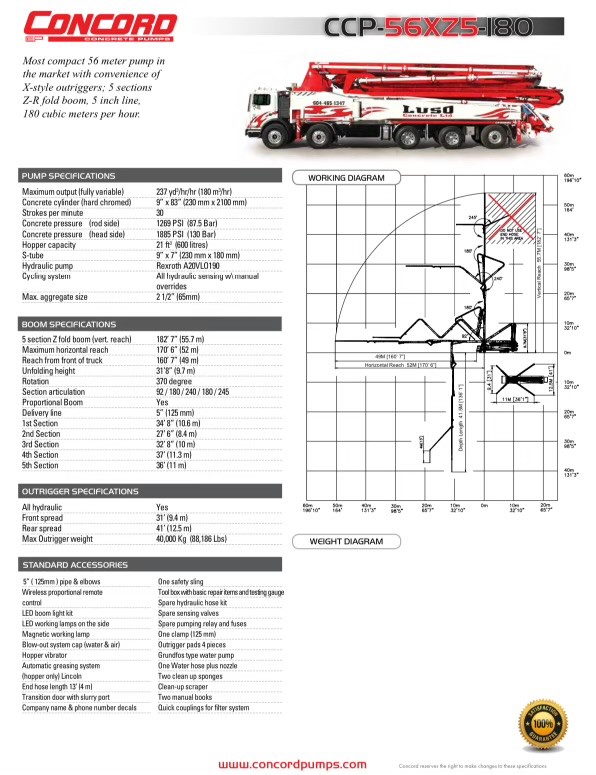

| 56-5ZR Concord | 31' 0" | 41' 0" | 36' 1" | 170' 6" |

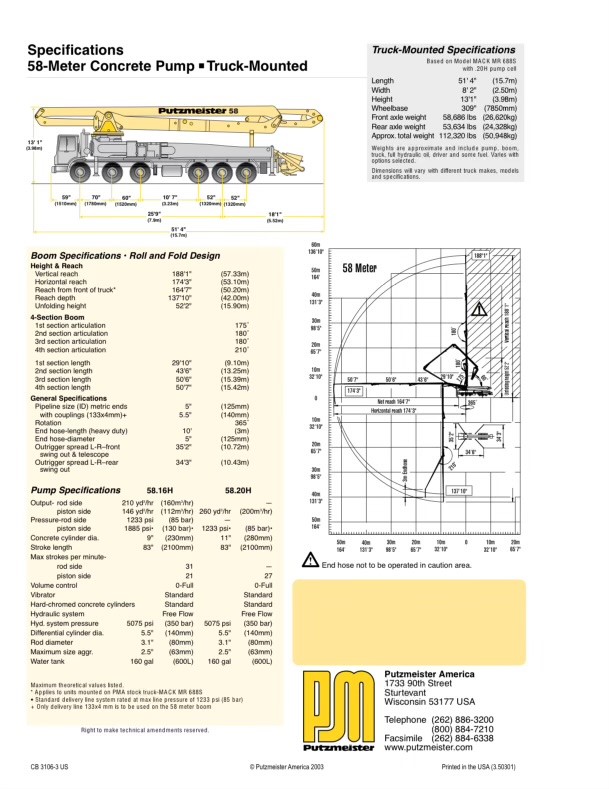

| 58M Putzmeister | 35' 2" | 34' 3" | 34' 6" | 174' 3" |

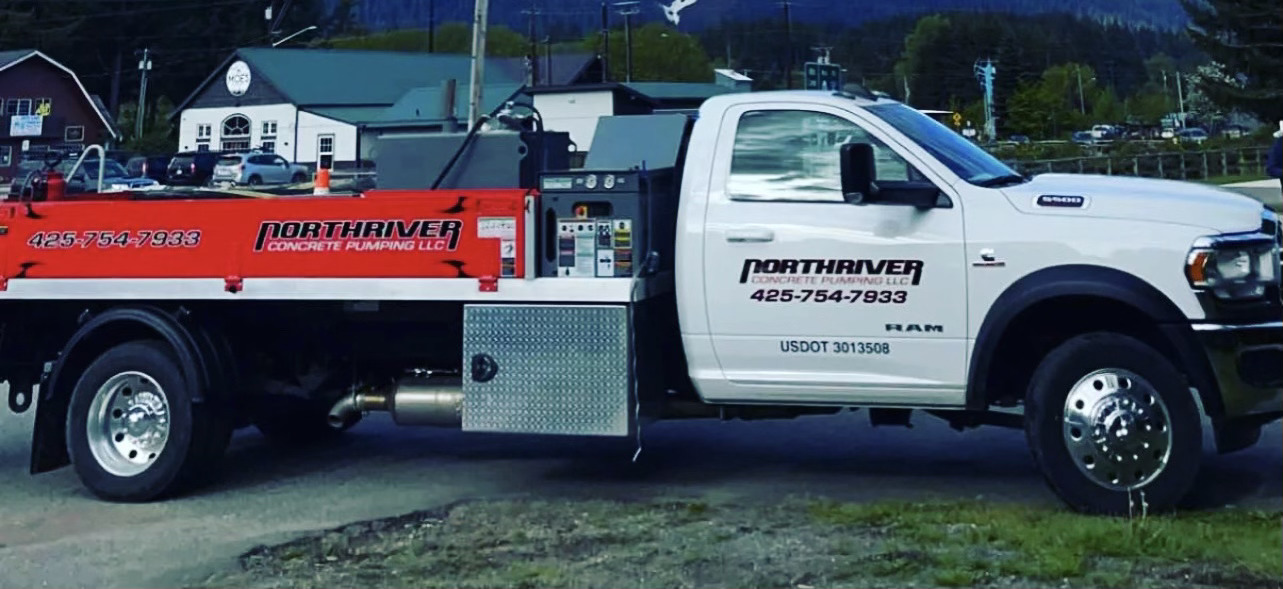

Line Pump
Hose Sizes
| Hose Options | 2.0" |
|---|
| 2.5" |
| 3.0" |
| 3.5" |
| 4.0" |
